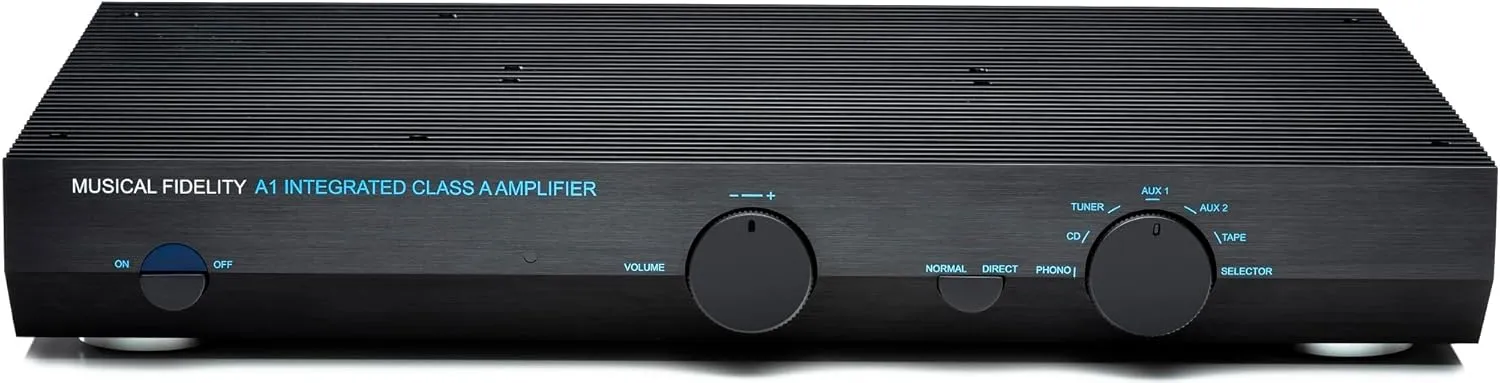

• The A1 is built around a completely discrete and symmetrical Class A topology. It‘s able to output 25W of pure Class A power @ 8 ohms load with 25A of maximum output. While the numbers here might seem rather low, the ability for the output stage to drive difficult speakers is a small miracle in itself. The amp design being dynamic class A, and if Class A standing current is exceeded, it will automatically allow more. It therefore “slides” (NOT “switches”) smoothly into class B style operation.
• The new A1 has received an updated transformer from shared (1985 original) to more efficient “dual mono split rail” windings. The amp stages are supplied by fully independent left and right power supplies for better power handling and stereo imaging and each power amplifier now has double supply capacity resulting in reduced ripple and noise. The transformer‘s noise and heat dissipation are reduced due to better efficiency and updated components.
• The low noise preamplifier circuitry is the same as the original 1985 design and, as we have highlighted above, greatly benefits from the improved, fully smoothed and regulated power supplies. Among the discernible alterations, one that immediately catches the eye is the addition of a new „direct“ switch at the preamp stage. With this switch you can totally bypass the gain block before the volume control, resulting in roughly 10dB less gain.
• The A1 employs a discrete current-mode input stage for lowest noise amplification of MC and MM cartridges. A low noise current to voltage conversion stage is used for further amplification and RIAA equalization. Automatic input impedance matching for the selected MC input, along with increased gain increases the versatility of the A1‘s phono stage.
• The A1 has one secret. This secret is simple: it makes music. It sounds sweet and fluid and creates a beautiful atmosphere around natural instruments. Especially in small to mid-sized rooms, carefully set up with a pair of great two-way speakers. It is not a powerhouse, but music lovers will cherish its abilities. It‘s also not a product that you‘ll want to hide. A perfect example of form follows function. The oversized heatsinks define the A1‘s look, but they are essential for its operation.
