- Voltage: TRMS, peak, crest factor (4-channel); Current: TRMS, peak, crest factor (4-channel); Power (active, reactive, apparent); Power measurements fully compliant with IEEE 1459 (active, non active, fundamental, harmonic, load un-balance) and classic (vector or arithmetic) method; VFD (variable frequency drive, 5 Hz – 110 Hz), 400 Hz, 50 Hz, 60 Hz; Unbalance, flicker measurement.
- Harmonic and interharmonic analysis up to 50th harmonics, THD and TDD measurements; Energy (active, apparent, reactive, generated, consumed); Capturing and recording of power supply events (shutdowns, interruptions, swells, dips); Inrush currents monitoring and recording; Waveform/inrush displaying, snapshot and recording; Transients with sampling frequency 1 MSamples/sec; Power quality analysis according to EN 50160, IEEE 519.
- 4-voltage channels with wide measurement range; 4-current channels with support for automatic clamp recognition and “on instrument“ range selection; Automatic Smart Clamp detection and Smart Clamp range selection; Current clamp auto range selection.
- Please allow 2 - 3 weeks lead time for this new product to arrive.
- Comes with a 2 year (24 month) warranty from the manufacturer.

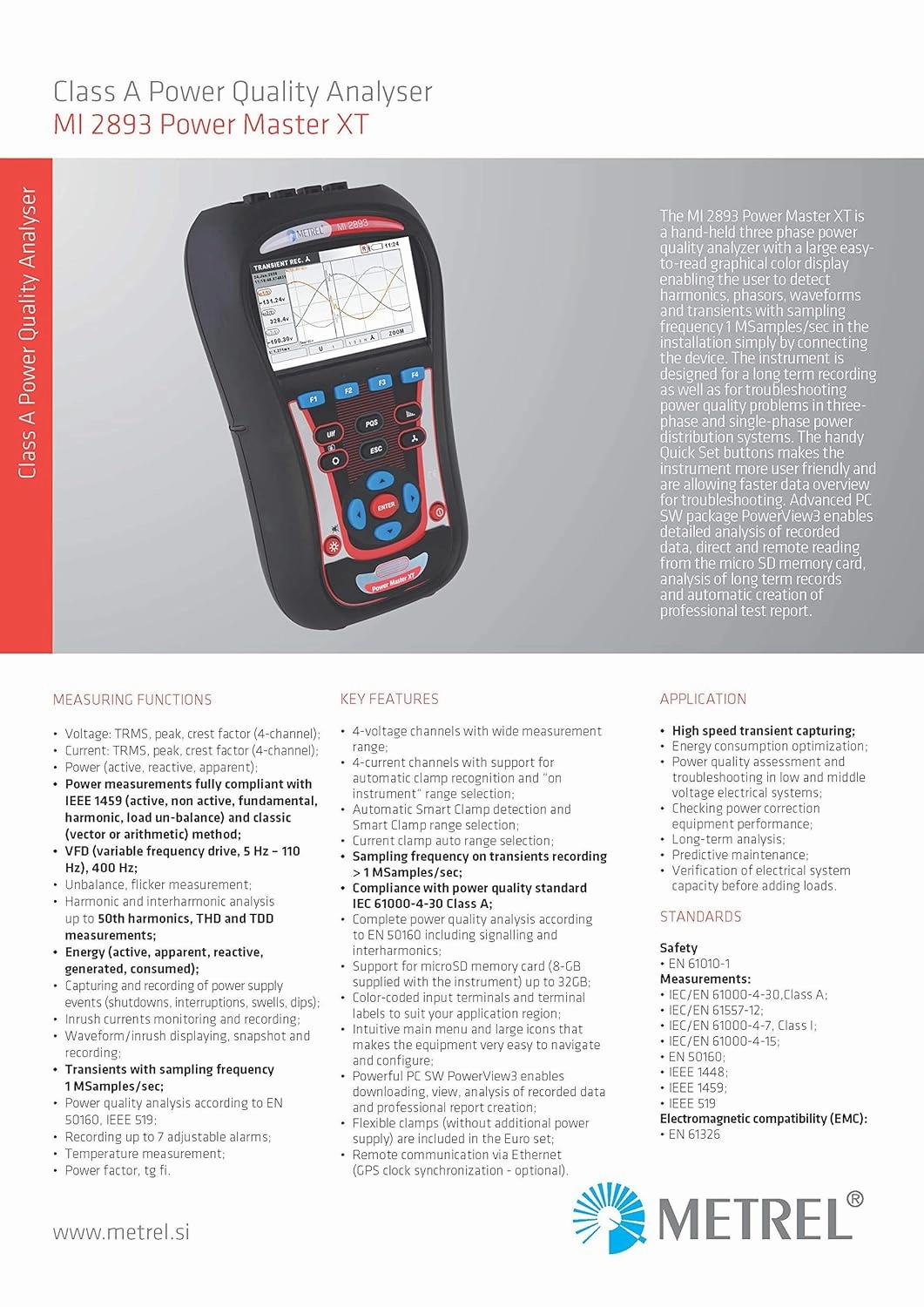

The MI 2893 Power Master XT is a hand-held three phase power quality analyzer with a large easy-to-read graphical color display enabling the user to detect harmonics, phasors, waveforms and transients with sampling frequency 1 MSamples/sec in the installation simply by connecting the device. The instrument is designed for a long term recording as well as for troubleshooting power quality problems in three-phase and single-phase power distribution systems. The handy Quick Set buttons makes the instrument more user friendly and are allowing faster data overview for troubleshooting. Advanced PC SW package PowerView3 enables detailed analysis of recorded data, direct and remote reading from the micro SD memory card, analysis of long term records and automatic creation of professional test report.
Included Equipment:
- Instrument Power Master XT
- Test probe, (brown, black, grey, green, blue), 5 pcs
- Crocodile clip, (brown, black, grey, green, blue), 5 pcs
- Voltage measurement lead, (brown, black, grey,green, blue), 5 pcs
- Labels for colour coding
- Temperature probe
- microSD memory card 8.0GB
- microSD card reader
- PC SW PowerView3
- RS232, USB and Ethernet patch cable
- Power supply adapter
- 1.2 V NiMH rechargeable battery, 6 pcs
- Professional protective waterproof case (A 1685)
- Instruction manual
- Calibration certificate
- Date First Available : September 15, 2020
- Manufacturer : Metrel
