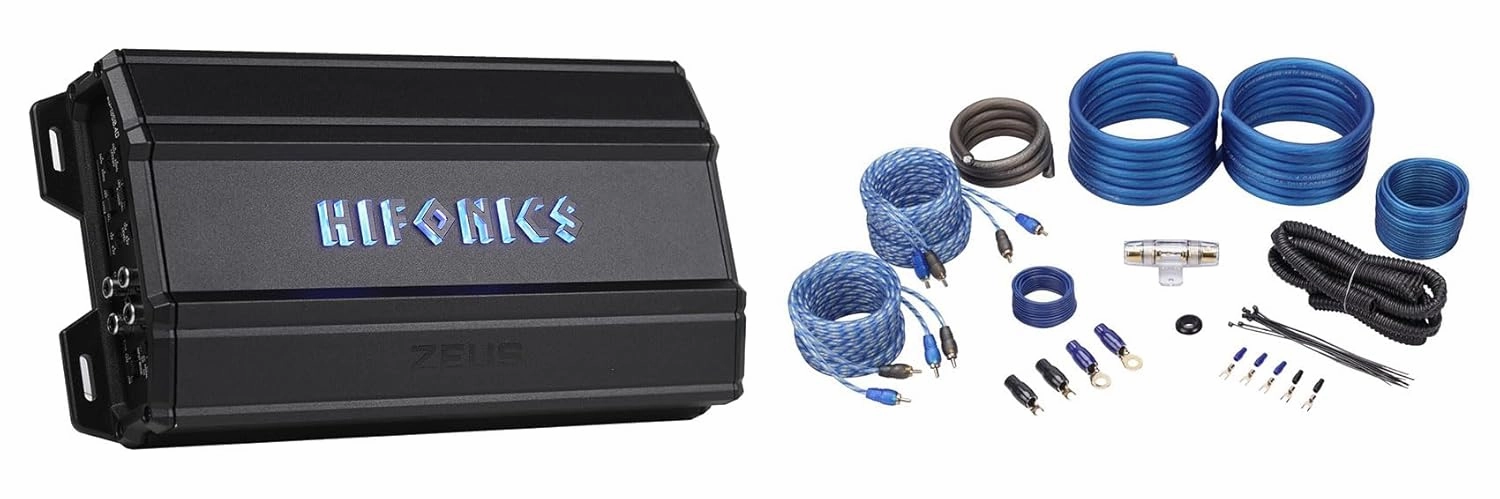

- Package Includes: (1) Hifonics ZD-1350.4D 1350 Watt 4-Channel Car Audio Amplifier Class-D Amp. (1) Rockville RWK42 4 Gauge 4 Chan Car Amp Wiring Installation Wire Kit (2) RCA's. Features: Compatible Vehicle Fitment: Universal. Low Noise Preamplifier Circuit: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.. RCA Inputs: Nickel plated high temperature impact resistant that allow for secure connections and is erosion resistant.
- Operation Mode: Four Channel, Full Range, Bridgeable: Flexible installation allows this amplifier to run in four channel or bridged mono mode.. Crossover Type: Onboard electronic crossover. Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.. Class / Topology: Class D: High efficiency with big power in a small footprint.
- Output Device Technology: PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.. Heat Sink: Aluminum: Modern Design Hifonics Heat sink for Superior Heat Dissipation.. Power Supply: Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
- Connection Type: Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.. LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.. Bass Remote Included: -
- Auto Turn-On: DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.. Specifications: Amp Class: Class D. Amp Total Channels: 4. Amp Max Power (watts): 1350. Amp Power @ 1 Ohm (ch x watts): N/A. Amp Power @ 2 Ohms (ch x watts): 4 x 335. Amp Power @ 4 Ohms (ch x watts): 4 x 170
Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 675. Amp Crossover: Variable Electronic 12dB Per Octave. Amp Variable High Pass Crossover 12dB per Octave: 50Hz-250Hz. Amp Variable Low Pass Crossover 12dB per Octave: 50Hz-250Hz. Amp Tone Control / Parametric EQ: Built-in bass control. Amp Bass Boost: N/A. Amp Subsonic Filter: N/A. Amp Phase Shift: N/A. Amp Variable Voltage: 0.2-6V. Amp Frequency Response: 10Hz-22kHz. Amp Total Harmonic Distortion (THD): <0.5%. Amp Speaker Level Audio Inputs: Yes. Pre-amp Audio Outputs: N/A. Amp Power Terminal 12v/GND: 4 AWG. Amp Speaker Terminal Wire Gauge: 12 AWG. Amp Fusing: External 60A. Item Weight (lbs): 5.07. Item Length (in): 11.65. Item Width (in): 5.75. Item Height (in): 2.16. Color: Black. Features: Rockville RWK42 4 Gauge 4 Channel Car Amplifier Wiring Installation Kit. (2) 17 High Grade Twisted Pair of 100% Copper RCA Cable. 17 4 Gauge Translucent Blue SuperFlex Power Cables. 17 18 Gauge Blue Remote Cable. 17 16 Gauge Clear Speaker Wire. 3 4 Gauge Clear SuperFlex Ground Wire. Gold Plated AGU Heat Resistant Fuse Holder. 80 Amp AGU Gold Plated Fuse. 7 Split Tube Loom. Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, and Grommets. Soft abrasion proof insulating jacket allows for 100% improved flexibility. PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F Hifonics ZEUS DELTA four channel amplifier delivers 1350 watts that features PWM MOSFET power supply for maximum current levels. The Rockville RWK42 4 AWG (American Wire Gauge) amp kit has the following diferences over other amp kits on the market at this price point.
- Product Dimensions : 15.16 x 6.89 x 3.15 inches; 9.15 Pounds
- Date First Available : October 24, 2023
- Manufacturer : Hifonics
- Country of Origin : China
