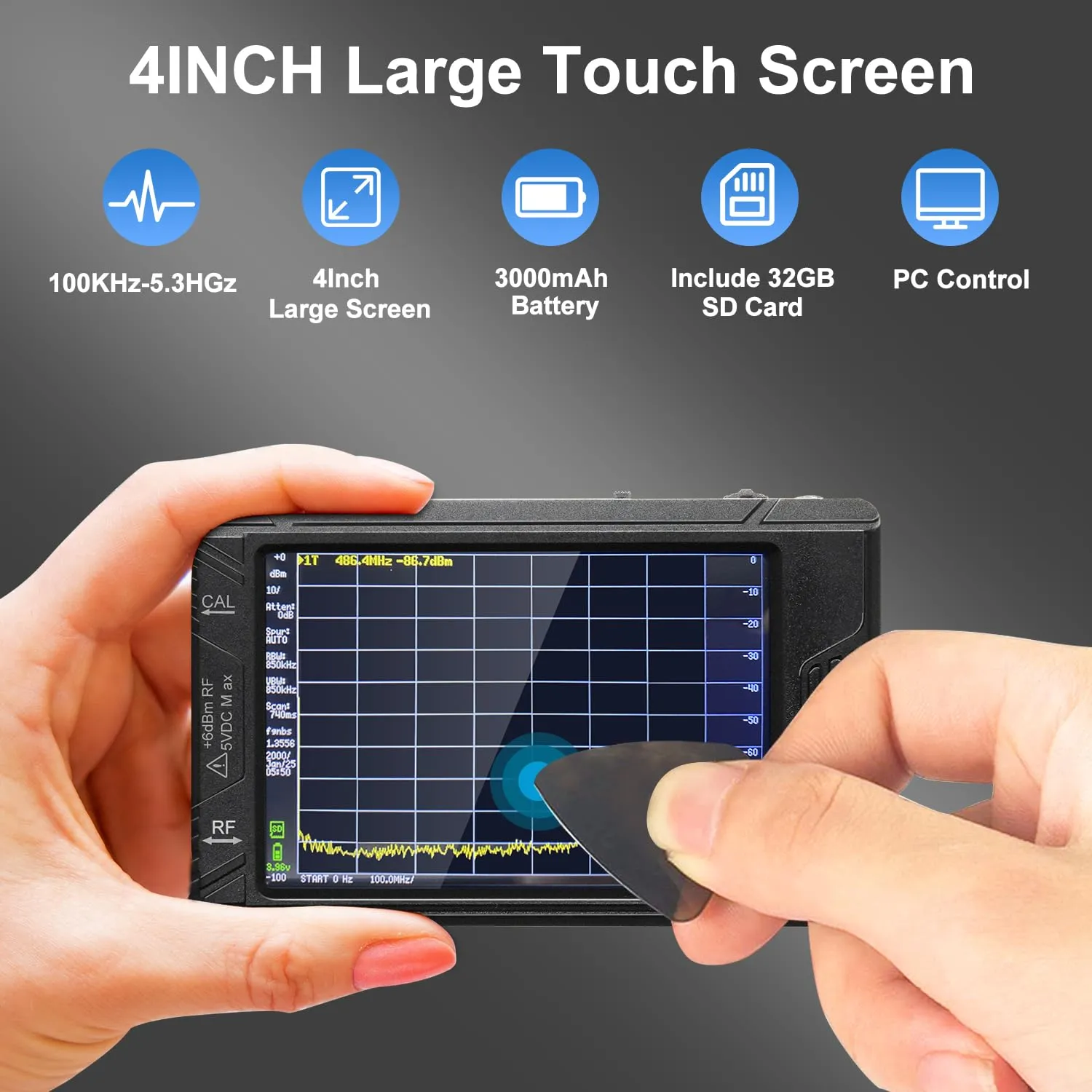

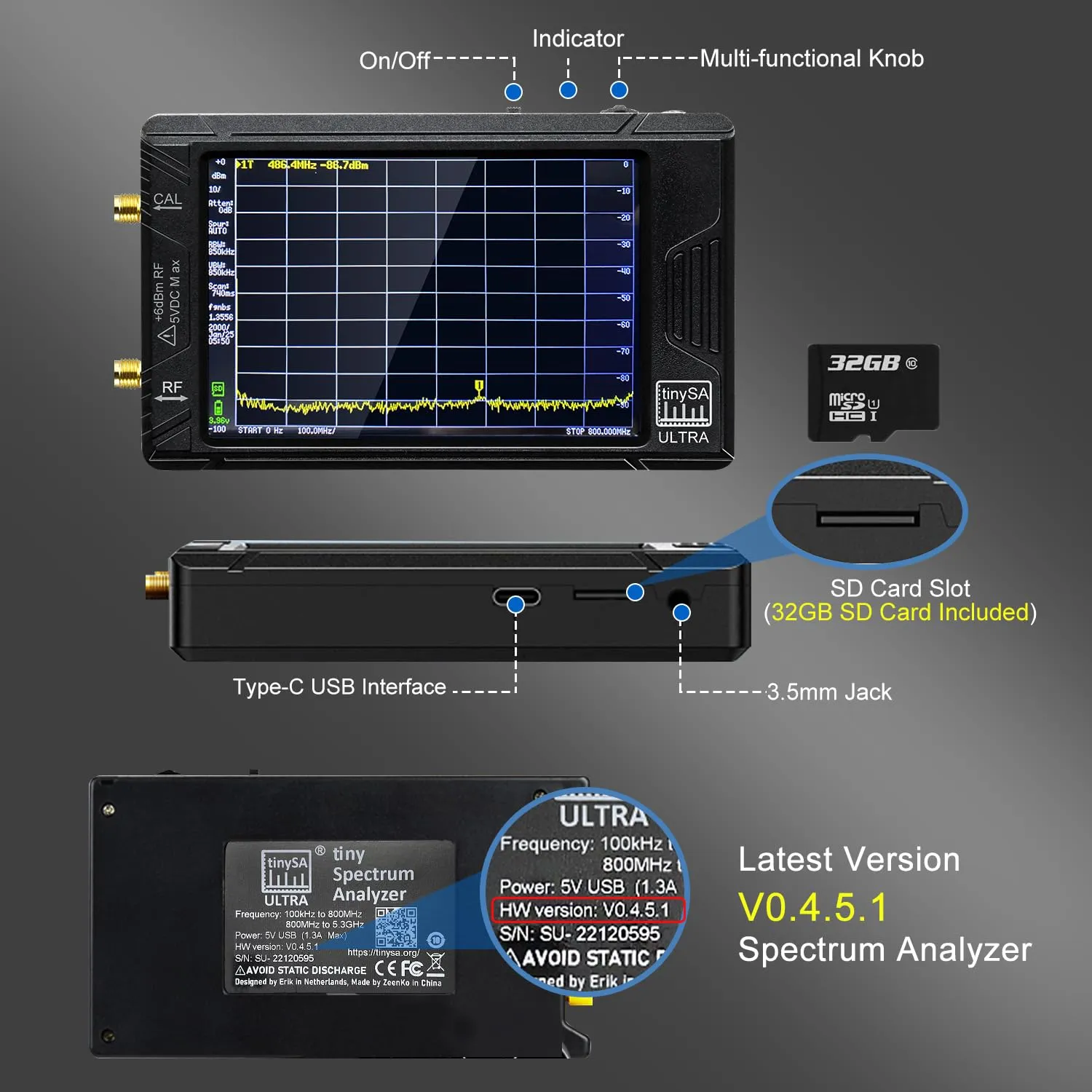

- 【New TinySA Ultra Mode】The Tinysa ULTRA spectrum analyzer developed by Hugen can reach an ultra-wide frequency range from 100kHz to 5.3GHz. The 4-inch large screen provides clear data images and sensitive operation touch. It also has a new ESD protection function, installed the latest hardware system V0.4.5.1, professional and stable.

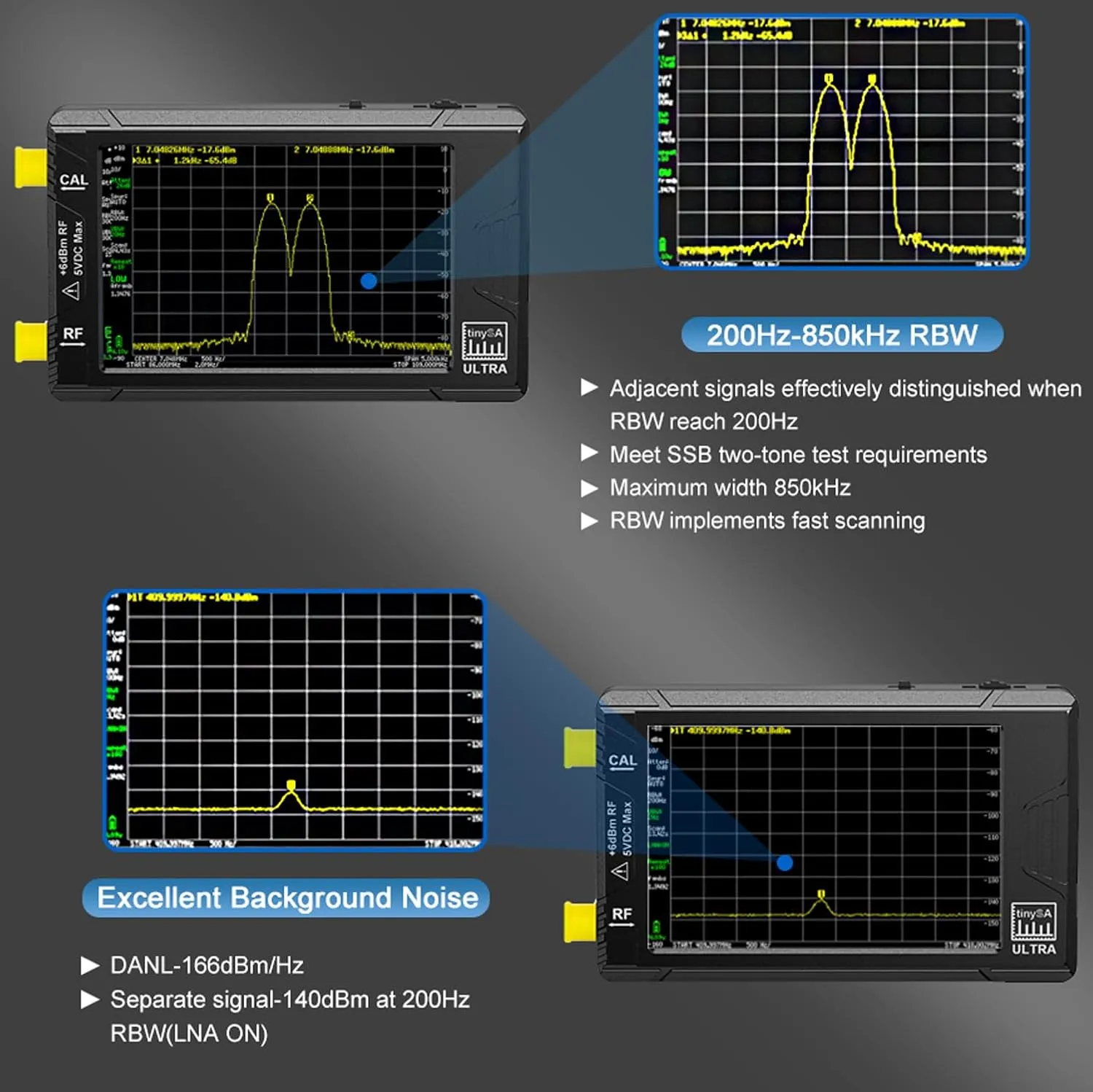

- 【Frequency Range】Tinysa ULTRA has 100kHz to 5.3GHz ultra-wide measuring frequency range, spectrum analyzer for 0.1-800MHz. In Ultra mode, up to 0.1MHz-6GHz. It has 200Hz-850kHz RBW, adjacent signals effectively distinguished when RBW reach 200Hz, meet SSB two-tone test requirements, maximum width 850kHz, RBW implements fast scanning.

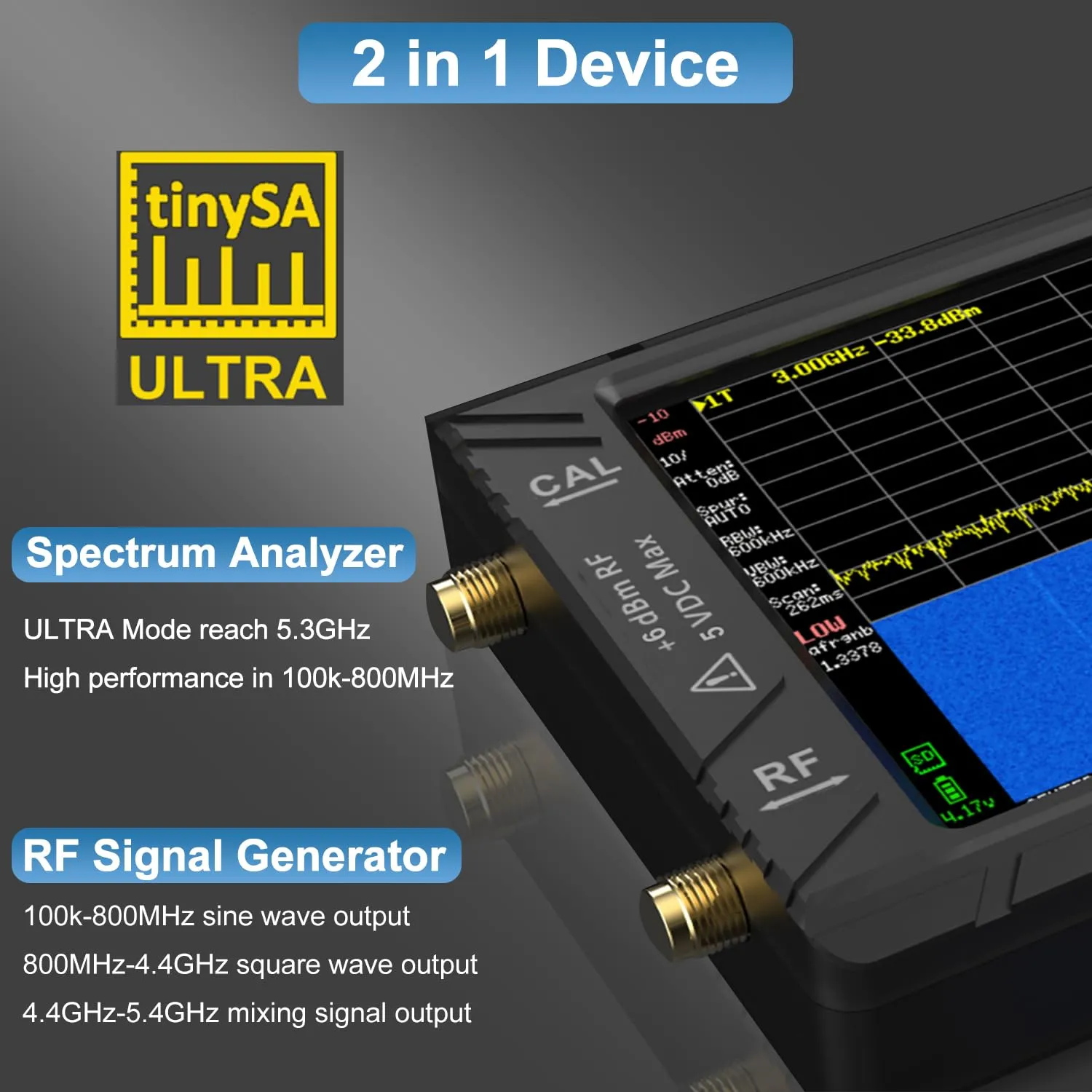

- 【Used As Signal Generator】It is 2 in 1 device, can be used as Signal Generator. Built-in calibration signal generator that is used for automatic self test and low input calibration. 100k-800MHz sine wave output; 800MHz-4.4GHz square wave output; 4.4GHz-5.4GHz mixing signal output.

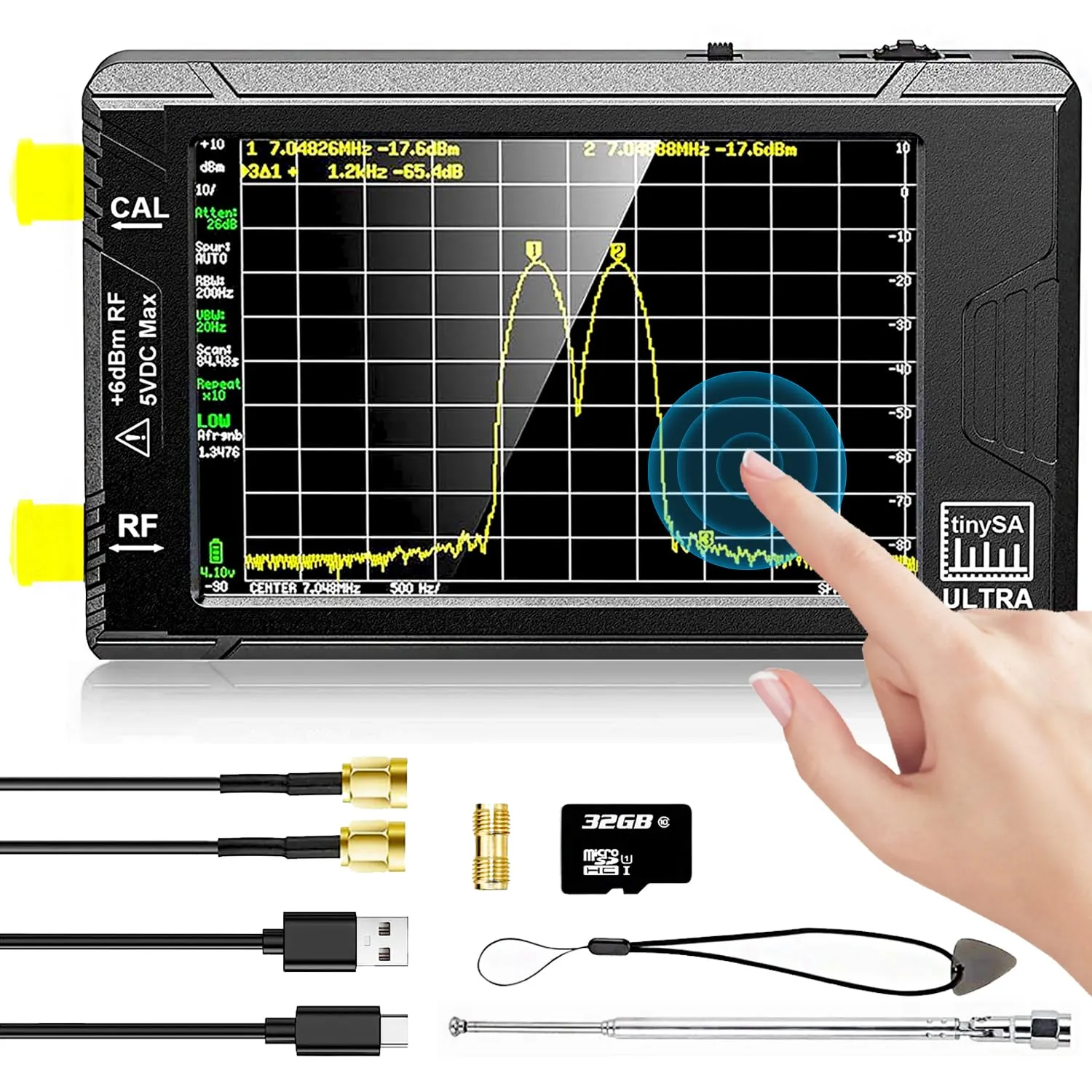

- 【Include 32GB SD Card】 This Tinysa spectrum analyzer built-in 32Gb micro SD card, can directly record data to the card ,which is convenient for your data sharing and storage. You won't be bothered by saving data any more, and can take tinysa for use at anywhere and anytime.

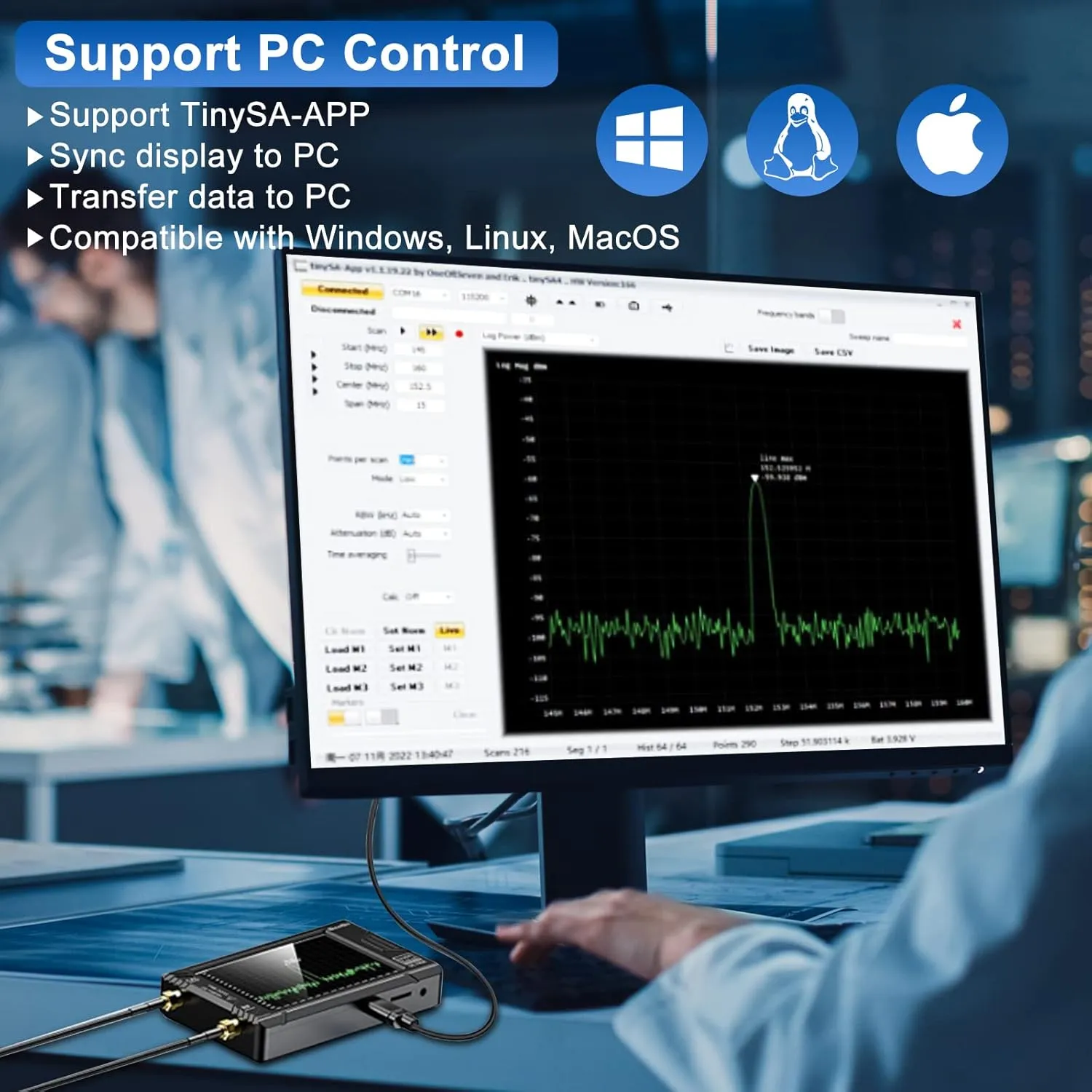

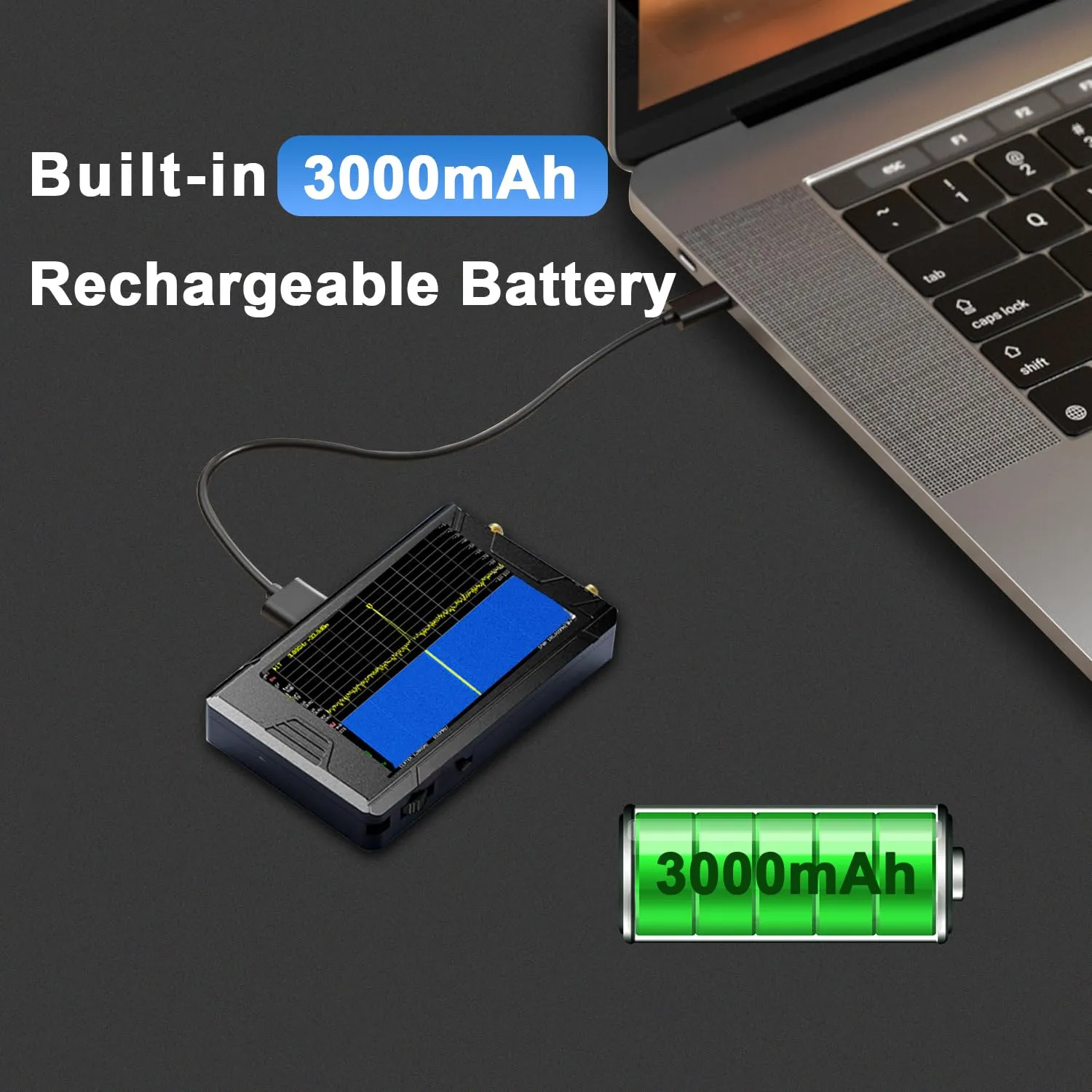

- 【3000mAh Rechargeable Battery & PC Control】 The tinysa analyzer built-in 3000mAh rechargeable battery，can be used for up to 8 hours. Support PC Control，you can also transfer data to your computer through tinySA-APP connection. The driver for Windows will install automatically after connecting to a Windows PC. The driver for Linux is built into the kernel.
- Package Dimensions : 6.5 x 5.04 x 2.17 inches; 12.31 ounces
- Batteries : 1 Lithium Ion batteries required. (included)
- Date First Available : January 4, 2021
- Manufacturer : SDRGEEK
- Country of Origin : China
